71555

Product Details

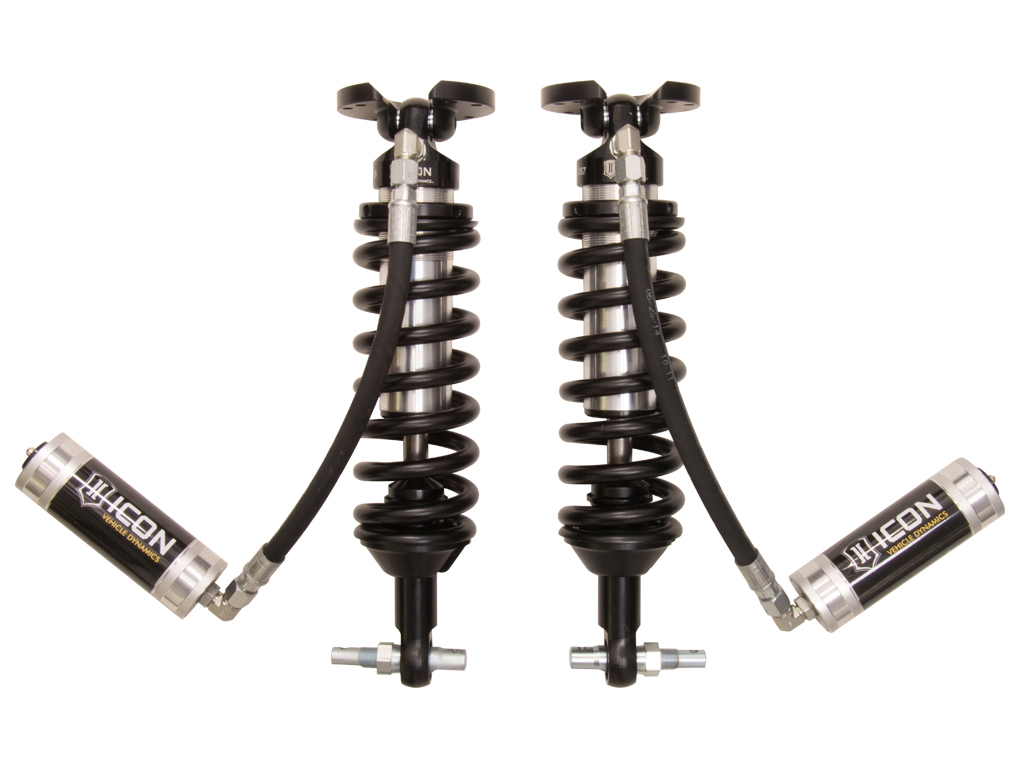

2007-2018 GM 1500 1-2.5" LIFT 2.5 VS REMOTE RESERVOIR COILOVER KIT

Technical Notes

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
TECH NOTE: Installation of ICON Delta Joint upper control arms recommended. Shock length requires trimming of factory droop stop to retain stock upper control arms.
TECH NOTE: Not compatible with models equipped Magnetic Ride Control
TECH NOTE: Not compatible with Hybrid models

Warranty information unavailable

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: Installation of ICON Delta Joint upper control arms recommended. Shock length requires trimming of factory droop stop to retain stock upper control arms. TECH NOTE: Not compatible with models equipped Magnetic Ride Control TECH NOTE: Not compatible with Hybrid models
UPC	00840103405995
Adjustable	No
Material	Steel
Body Diameter	2,5
Remote Reservoir	Yes
Adjustable Height	Yes
Spring Color	Black
Adjustable Damping	NO
Shaft Diameter	0.875
Service Parts	611019 - COILOVER HARDWARE KIT PAIR
Add-On Part	198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Width	12.00 in
Length	27.00 in
Depth	6.00 in
Weight	50.0000 lb
